Posts tagged with "ui" Colors

I host a page at /media that is a resource of stock assets - images, illustrations, video, fonts, etc.

I originally made this resource for myself because I was always forgetting what my favorite stock asset sites were. Over the years, though I’ve gotten a lot of traffic on this page proving that I’m not the only developer that dabbles in graphics and isn’t foolish enough to try to create everything from scratch. I don’t have the time, talent, or inspiration to consider that.

On that page, I ask readers to recommend more resources and recently somebody did.

The folks at let me know about their free online color tool -, and I was so impressed that I decided to blog about it as well.

When I start a new website, create a new brand, or even start putting together a photo album for my family, I want to pick a color pallet that has some chance of looking good. In the past, I’ve used sites like Adobe Color CC (formerly Kuler), but I’ve always found them to be overkill. Canva Colors instantly struct me as a simple and clean alternative. I was also impressed right off the bat at their inclusion of some design learning. That’s just what most of us developers need - to get a bit more design savvy.

I moved on from their /colors tool to check out the rest of their site and as a web developer, I’m impressed. For example, just take a look at their About page. That’s snazzy.

By the way, Canva asked me if I’d like to include a link to their tool on my /media page, but they didn’t ask me or pay me to blather on about how cool their stuff is. I’m just impressed.

So head over to and check it out for yourself.

App Art

One of my favorite steps in the app development lifecycle is the creation of the artwork. I’m not stellar at creating original artwork, but I definitely recognize when things look just right, and sometimes I stumble upon it. I must also have a little bit of marketing in me, because it’s my constant effort to brand things.

The artwork and branding is important, because an app developer must live in a constant state of capturing the user amid so much noise. An app needs to say “here’s precisely what I do and how it adds value to your life”. It takes a lot of design thought and effort to cut through the noise and reach your audience.

Good messages to communicate are: clean, simple, creative, elegant, and fluid.

I’d like to walk you through my process of creating artwork for an app called Everyview. Everyview is webcam viewer that attempts to implement well the design principles of Windows 8. It’s intended to feel like a breath of fresh air. There are plenty of apps for viewing web cams and it’s nothing that can’t be done in the browser too, but it’s seldom a consolidated and elegant experience. As of this writing, Everyview is not yet published to the Windows Store, but by the time you read it, it may be. Try searching for Everyview.

My artwork for Everyview started with the creation of a symbol. The symbol had to represent every image that could possibly come through the eye of a camera and so I simply chose to represent the eye of a camera. I didn’t want to make the app subject to aging by choosing a specific camera though, and I didn’t want to specify a still camera or a video camera. So I created a camera lens. The icon doesn’t determine absolutely that you’re looking down the barrel of a DSLR, an amateur video camera, a high-end video camera, or any other specific model. It’s an agnostic character of a camera.

Looking into the eye of a camera invokes a bit of a “live” feeling, as if you’re on the air. I chose not to embellish the icon with a lot of gradients and or other attempts to make it look more realistic. As long as it says “camera” to the user, that’s enough. I did, however, ad a lens glare that identifies it without doubt as a camera lens.

Let me show you how I created this image.

I used CorelDRAW because… well, because I always use CorelDRAW. Use your graphics package of choice, but don’t restrict yourself to a bitmap editor. Creating images in a vector-based graphics package has serious benefits and will make exporting to the various required app graphic sizes a breeze. Creating images in a bitmap package will inevitable find you needing a size larger than what you designed for. I recorded a primer on using CorelDRAW and you can access it at

Before I show you how I created that image, let me show you how I set up CorelDRAW for creating images for Windows 8. Choosing File | New in CorelDRAW by default will start you out with a document the size of a piece of paper. CorelDRAW is very good at creating artwork for print, but we’re concerned here more with pixels than we are with inches, so let’s change the defaults and save it for future use.

I created a preset called Win8 App that uses the base Windows resolution of 1366 x 768 pixels. I also chose a color mode of RGB since the results are to be rendered to a screen rather than a printer. When you’re working with documents of a designated pixel width/height, the resolution I mostly irrelevant.

If you’d like a nice place to start, try downloading the template I created at /w8tiletemplate.

Now, with a new document, we can go about creating our camera lens graphic.

Creating the lens graphic

Create a series of concentric circles like so. You do this by creating the largest and then resizing it with the CTRL key held to resize about the object’s center and hitting the right mouse button when you have your next circle to create a copy.

Use the second largest to trim the largest by clicking first the second largest and then holding shift and clicking the largest. Then hit the trim button on the toolbar. Then delete the second largest circle. Setting the fill color of all objects to black and removing the outline color should leave you with something like this…

That’s nice and simple and we have only to create the lens glare, which is only slightly harder than what we’ve done so far.

Make another couple of circles inside the smallest. I like to give them a red outline (right click on red from the color palette) while I’m working so they’re easily discerned.

When you draw an ellipse (in this case a circular ellipse) in CorelDRAW, you have an ellipse, which is different from a custom curve. Ellipses have the property that you can grab their little vertex using the shape tool and drag to reduce the ellipse to an arc. Use the shape tool (F10) to do just that and work your way to something like this…

And then use some trimming and intersecting to end up with this…

Designing the tiles

Now it’s time to design yourself some tiles. At a minimum, you’ll need a standard app tile (150 x 150), a small logo (30 x 30), a store logo (50 x 50), and a splash screen (620 x 300). Additionally, you can design a wide logo (310 x 150) and some additional promotional images in case the Store finds your app worthy of being featured. It’s recommended that the wide logo only be used if you’re going to implement a live tile.

Let’s start with the main app tile. Here’s what I came up with for that…

Obviously, the tile incorporates the symbol we just created, but I also add a stylized app title below that. I chose a fairly bold font, condensed it, used different colors for the words and even shoved them together and created a little notch. Little design choices like this are somewhat arbitrary, but will end up becoming your brand and how people recognize your app. Finally, I added a soft gradient behind the entire title. You have to be careful with gradients in modern apps, but a shallow, gray gradient here seems to add a sort of dreamy, modern, cloud feel to the app.

Next, I’ll elaborate a bit on the standard logo design when creating the wide logo and the splash screen which I tend to make rather similar. Here’s what I came up with.

Now with more horizontal space than vertical, we stretch the brand elements out left to right and I like to add a little subtitle that describes without a doubt what the purpose of the app is - it’s a webcam viewer. Like the notched _v_ in view, I notch the _E_ with the camera lens and keep all of the graphics tight and bold.

The last step is the creation of the store and small logos.

The store logo is used for your apps dedicated detail page in the Windows Store. It’s common practice to just shrink the app tile down from 150 pixels to 50 and call it good, but that’s unfortunate because it’s rare that the app’s main tile will look so good at this size. Take a look at the Bing app’s Store logo captured from its page in the Store…

You want this image to be even simpler than the main app tile, to use most of the 50 x 50 pixel space, and to have a transparent background.

For my Everyview app, I stuck to the basic, original symbol. In CorelDRAW if you want to render something out a certain size even if the elements inside don’t quite fill up that size, you just create a bounding rectangle the size you want and then give it no fill and no outline. I have rendered this bounding box orange below for visibility only. To export this image, you simple set the bounding box’s outline color to none (invisible), select the entire group (bounding box and symbol together), and then export (CTRL + E) it.

Here’s how that would be rendered, however.

Notice a few things about this:

  • The image has been rendered to pixels custom made for the export size chosen (it could be rendered absolutely huge and would still look great)
  • The bounding box is not visible, yet it is responsible for the overall size and shape of the exported image
  • The background is transparent (designated by the checkerboard pattern) but the lens glare is always white
  • The transparency is 24-bit which means it has various levels of transparency around the edges to make it blend perfectly with the background
  • There is a little bit of space around each edge of the symbol
  • The symbol is large enough to capture all the quality we can in this restricted space

The small logo is used to represent your app when the user semantically zooms out of their start screen. Try it and see.

You can use the exact same techniques to create the small logo as you did for the Store logo. The small logo (30 x 30 pixels) is even smaller than the store logo (50 x 50 pixels) so it becomes that much more important to be intentional about simplifying your image.

That’s as far as I’ll take this for now. Of course, you would continue your design effort into the app itself so that the entire effort is unified and consistent.

I’d like to point out one of the advantages to Microsoft design principles that ends up being highlighted by the content of this article. No part of the splash screen or the tiles or even the app itself are contributed to by Windows. The entire space falls under the responsibility of whoever wears the design hat in your organization (even if you are your organization and you wear all the hats!). The app tiles as well as the app’s main design surface because a truly empty canvas and 100% of the pixels are there to deliver your brand, deliver your functionality, and delight your user.

Have fun with this. It’s fun stuff for sure.

Reduced Discoverability in Windows 8

I just finished reading Jakob Nielsen’s article Windows 8 - Disappointing Usability for Both Novice and Power Users where the summary reads…

_Hidden features, reduced discoverability, cognitive overhead from dual environment, and reduced power from a single-window UI and low information density. Too bad. _

First of all, I think Jakob’s article is pretty well written and rather honest as well. I don’t think he’s trolling or begging for clicks. I do want to offer some extended thoughts on the matter, however.

Jakob’s second point is Windows 8’s reduced discoverability. I couldn’t agree more, but we can no longer work from an assumption that discoverability is king. We used to worship it and we ended up with a thousand commands on our design surface all conveniently a single click away. We had bloated navigation bars with submenus inside of submenus that all activated on hover (a gesture shackled to the mouse). In short, we had huge swathes of real estate dedicated to things the user might do and places they might go. No more. Now the user enjoys his content and brings up the charms bar when _he_ wants to.

That simplicity comes at a cost though. As Jakob said, Windows 8 amounts to a reduction in discoverability. You may have seen the internet video of someone’s poor old dad left to discover Windows 8 on his own. He found his way to the desktop but couldn’t find his way back. All he had to do was move his mouse to any corner of the screen or hit the Windows key on his keyboard, but he didn’t know that. I think it’s safe to say he hadn’t discovered all the features yet. If you put a caveman in front of Windows 8, how long would it take him to figure out that he can swipe from an edge of the screen (unless he cheated and watched the introductory animation while setting up his profile).

If you can surmount that hurdle (and a few more) then you’ll be well on your way to enjoying your UI and I hope you’ll appreciate that it’s not trying to put everything front and center. Just for fun, I’d like to make a list of things the caveman (or any of us actually) would not know without being told.

  • Swipe in from the left to browse other Store apps
  • Swipe in from the right to access charms
  • Swipe from the top or bottom to access app bars
  • Your preferences are in the Settings charm
  • If you want to search your app, you need to go to the Search charm
  • To print, you go to the Devices charm
  • To select something you swipe down on it (or swipe right if you’re in a vertical scroll)
  • You can just start typing on the start screen to find things
  • Cut, Copy, and Paste are hiding behind a hold gesture
  • (and there are likely more)

You know what’s way longer than that list? The growing list of things a computer can do, and they can’t all fit on the screen at once nor should they. I say leave the interactions for when the user is interested in interacting and requests them, otherwise just show him his content.

As for the remaining points in Jakob’s article.

There’s no question there are hidden features. When you open a photo and there’s nothing on your screen except your photo, you can bet there are hidden features. When your primary user interactions (e.g. app bars, charms bar) are off screen, you can be sure there are hidden features. Once again I want my features to be hidden. Until I want my features. If I have to learn where they are, so be it, but that happens once and doesn’t mean I want to look at them on the first page of my app for the rest of my life. I can’t agree with cognitive overhead from dual environment because I’ve never felt any brain pain over the fact that there’s a desktop back there. I love it in fact that I have access to all of the legacy features and functions. Reduced power from a single-window UI? Actually, it’s not a single-window UI. The desktop is still there and you can use your windows and resize them and everything still. And low information density? Yep, and I really appreciate it too!

Data Presentation

Sometimes it’s hard to know what control to use when you’re thinking about bringing your data feed into your Windows 8 app. You know you want to bring them in as tiles of some form or another. Maybe you want to do classic square tiles like eBay.

Hopefully, though, you want to add a little bit of flare and personality to yours. You could do something like the Cookbook app. Their primary data point is obviously a recipe and it looks to me like the designers of this app have put them in little Polaroids with shadows and everything.

You could copy the music app that utilizes hero images – larger than average images that communicate a sense of feature or significance. Please ignore that Justin Bieber appears to be in my now playing section. I can assure you that’s not the case

You could even get trés chic and model Cocktail Flow with their novel, beautiful tiles. They hardly look like tiles, but they still convey that essential Windows 8 design.

Inevitably, you’re going to have to make a choice about what control underlies this presentation of data, and eventually you’re going to have to implement it.

In this post, I’d like to do a little bit of a study into what control to choose when and why. As usual, I’ll be coming from an HTML/JS perspective, so if you’re wondering what your options are in XAML, Bing is your friend.

The first thing I want to point out is that not all lists of data are created equal. If you’re working on a section of your hub, you’re working with a very finite set of data. On the other hand, if your user has chosen to see something like your list of all recipes, then the list could have 10’s or 100’s of items in it. The two scenarios are candidates for vastly different solutions.

For the former, the hub section, I would employ a grid like what you see in the Music app screenshot above. You know that you have exactly four cells for images (for albums in this case) and you can determine which four albums you want to show and of them which deserves the ginormous featured cell on the left. The advantage to using a grid is that you have ultimate control over its layout. You don’t have to stick to symmetric lists of square. You can get funky with the layout and you can change it up too. You can create one layout for features a single item and another for featuring three. It’s all up to you (with the permission of your designer friend of course). The downside to using a grid is that you don’t get to bind it to an enumerable list of data. That’s not much of a problem, however, because again you’re only working with a handful or so of items. Also, grids don’t have any of the UX yum built in. They don’t automatically handle selection for instance, so if you want to allow the user to swipe select multiple entities in your grid, you’re going to have to figure out how to do that.

For the latter, the recipe list like you see in the Cookbook app screenshot above, I would employ a ListView. A ListView does have the UX yum built in. It automatically handles invocation, selection, and a lot more. It flows, it pans, it groups, and it wraps. It’s really great at what it’s made for.

In other scenarios, if you’re okay with giving up the yum that a ListView provides, you might want to opt for a FlexBox. Flexboxes give you better control than a ListView over how it’s members are laid out, and nothing complicated gets rendered out for each member of the flexbox. If you just inject a bunch of divs into your flexbox then that’s all it will contain.

To avoid a merely conceptual post on a developers’ blog, allow me to create a quick, custom grid and then populate it with some content.

First, the design. Let me whip out my digitizer pen and draw up a quick grid layout using CorelDRAW (woot!)…

That’s the concept. Now for the implementation. I’m only going to layout the seven items in the first section.

First the HTML…

<!DOCTYPE html>
<meta charset="utf-8" />

<!-- WinJS references -->
<link href="//Microsoft.WinJS.1.0/css/ui-dark.css" rel="stylesheet" />
<script src="//Microsoft.WinJS.1.0/js/base.js"></script>
<script src="//Microsoft.WinJS.1.0/js/ui.js"></script>

<link href="fancygrid.css" rel="stylesheet" />
<script src="fancygrid.js"></script>
<div class="fancygrid fragment">
<header aria-label="Header content" role="banner">
<button class="win-backbutton" aria-label="Back" disabled type="button"></button>
<h1 class="titlearea win-type-ellipsis">
<span class="pagetitle">Fancy Grid</span>
<section aria-label="Main content" role="main">
<div id="grid">

The only thing in that HTML that isn’t boilerplate is the div called grid and the seven div’s inside. There’s one for each of the tiles in our layout. And now on to the CSS which is not a terribly lot longer…

.fancygrid section[role=main] > * {
margin-left: 120px;

.fancygrid #grid {
display: -ms-grid;
-ms-grid-columns: 240px 300px 240px;
-ms-grid-rows: 184px 184px 184px;

.fancygrid #grid > div {
border: 1px solid white;
margin: 5px;

.fancygrid #grid > div:nth-of-type(1) {
-ms-grid-row: 1;
-ms-grid-column: 1;
.fancygrid #grid > div:nth-of-type(2) {
-ms-grid-row: 2;
-ms-grid-column: 1;
.fancygrid #grid > div:nth-of-type(3) {
-ms-grid-row: 3;
-ms-grid-column: 1;
.fancygrid #grid > div:nth-of-type(4) {
-ms-grid-row: 1;
-ms-grid-column: 2;
-ms-grid-row-span: 3;
.fancygrid #grid > div:nth-of-type(5) {
-ms-grid-row: 1;
-ms-grid-column: 3;
.fancygrid #grid > div:nth-of-type(6) {
-ms-grid-row: 2;
-ms-grid-column: 3;
.fancygrid #grid > div:nth-of-type(7) {
-ms-grid-row: 3;
-ms-grid-column: 3;

Great. No JavaScript. As it should be. This is just a matter of layout, so it’s a collaborative effort between HTML (our structure) and CSS (our layout and style). The HTML in this case is dead simple. It’s just a div with seven div’s inside. Our CSS is like that kid in your chemistry lab in high school that did all the work for your whole lab group while you played Nintendo. Slacker.

So let me explain. The first style rule that refers to the main section is just something I do make sure everything in that main section takes on the 120px left margin that characterizes Windows 8 apps. The next rule applies to the grid. You may know by now, but the .fancygrid that preceeds #grid is just there to namespace this rule to this page. The next rule applies to all seven of the child div’s of the #grid div. The child combinator (the >) in this case is likely important. If you end up putting content inside of these cells and that content contains any div elements at all, this rule would apply to them if you used a space (the descendent combinator) instead of that greater than sign. So for all seven cells we want to draw a white border and give 5px of space. Why 5px? Because the Windows 8 design principles call for 10px between items and so that would be 5px around each item. Then I’m using the :nth-of-type() pseudo-class to refer to each div according to its position and add the correct -ms-grid properties to put it where it belongs. Notice how the 4th div has a span of 3.

And here’s the result…

Now, if you’re like me, you see this done once and it looks fine and dandy, but your mind races to imagine the value of something like this in a library primed for reuse. It would be super easy to dynamically add div’s and a couple of CSS properties each according to the template selection chosen by the developer. I believe I’ll get started on that now. Or perhaps soon. By all means, please beat me to it.

Hope this has been helpful. Now get to work!

Metro Design by Blink Interactive

Last Friday my user group (“The Ocho”) met and heard a special presentation on Metro Design thanks to Blink Interactive.

Valentina and Christina are UW students and interns at Blink and gave us a ton of information about user centric design and then the history and concepts behind Metro design.

I promised that I’d post their slide deck for those that want to take a look, so here it is.

If you were there with us, thanks for joining. If you weren’t, then look up our next meeting at Maybe we’ll see you there.

Windows 8 Design v3.pdf (3.69 mb)

When to Use ViewBoxes and FlexBoxes

HTML and CSS is great, but there’s at least one thing that has driven web designers mad for ages - layout. We used to use tables and it worked. We knew their weaknesses, but they worked. Then we were told that tables are for tabular data and div elements are for layout, but divs are wretched creatures. To set divs next to each other one had to float them, but then when finished floating had to be explicitly turned off - argh. Also, divs had no notion of filling vertical space or of controlling the vertical placement of anything within it.

So a myriad of web designers resorted to absolute positioning, browser hacks, jQuery UI positioning, or some other means just to get things to go where they ought.

Enter Windows 8.

Windows 8 allows us to design our Metro style apps using HTML and CSS. In doing so, however, it the CSS standards and Microsoft have given us some facilities to finally place things where we want them.

It’s not obvious how everything works though so let me give you a boost. If you start with a Fixed Layout Application (for the record, I think it should be called the Flexible Layout Application) project template you get the right stuff automatically, but here’s an explanation so you have the concept as well.

We’re dealing with two entities here: the WinJS.UI.ViewBox control and the -ms-flexbox css property value (for the display property).


The purpose of the ViewBox is stated in the documentation. It says that it “Scales a single child element to fill the available space without resizing it. This control reacts to changes in the size of the container as well as changes in size of the child element. For example, a media query may result in a change in aspect ratio.”

The first thing I had a hard time wrapping my head around was the overlap between a ViewBox and a FlexBox. Then I discovered that there really isn’t any. The ViewBox control is quite simple. It scales the content that it contains but maintains it’s aspect ratio.

It works like this…

Note that it does not work like this…

In other words, as it says in the documentation, it scales the contents, but it keeps their proportions.

And that’s really the end of it. The ViewBox serves this one purpose.


Now it’s time to talk about the flexbox. This is not a WinJS control, but rather an implementation of a CSS3 property. It’s not quite a standard property yet because all of the browsers are still implementing it with vendor specific properties and values, but it’s close. For Windows 8, we specify a display property with a value of -ms-flexbox to indicate flexbox layout.

The purpose and scope of the flexbox is a bit bigger than the ViewBox. Here’s what the W3C spec for the CSS Flexible Box Layout Module says “In the flexbox layout model, the children of a flexbox can be laid out in any direction, and can “flex” their sizes, either growing to fill unused space or shrinking to avoid overflowing the parent. Both horizontal and vertical alignment of the children can be easily manipulated. Nesting of these boxes (horizontal inside vertical, or vertical inside horizontal) can be used to build layouts in two dimensions.”

So, like the ViewBox, we still have the concept of the container’s content changing in size to fit the container, but this has more to do with a collection of child items.

Additionally, the flexbox offers a lot of properties to specify how it’s children are laid out. A quick glance in Blend at the CSS properties on a div in the Flexbox category will enumerate them for you…

Notice first the -ms vendor specific prefix as I mentioned.

To give a thorough description of the possibilities with these properties, I’d be duplicating what’s already done quite nicely on the flexbox page on, so just go there and read the nitty, gritty detail.


The ViewBox is a WinJS control, whereas the flexbox is a CSS property.

The ViewBox always acts on a single child item, but the flexbox can act on multiple child items.

The ViewBox itself changes size to fit it’s container as a core feature. The flexbox can be told to scale to 100% either in width or height, but it doesn’t have to.

The ViewBox does not extend control over the alignment and scale modes of it’s contents, but always does the same thing - scales the child item without changing it’s proportion.

All Together Now

Now that you know how different these controls are, consider them together. If you put a flexbox div inside of a ViewBox, you get a really effective layout tool. Try this for your HTML…

<div data-win-control="WinJS.UI.ViewBox">
<div class="flexy">
<div class="item">A</div>
<div class="item">B</div>
<div class="item">C</div>

With this as the CSS…

.flexy {
-ms-flex-align: center;
-ms-flex-direction: column;
-ms-flex-pack: center;
display: -ms-flexbox;

.item {
height: 200px;
width: 200px;
border:solid 1px;

What you have now is a flexbox that fills its area well. Look at these simulator screenshots so you can see what this would look like…

[more images missing]

XAML is unarguably the most powerful layout engine I’ve ever seen, but I really don’t feel like there’s too much in HTML/CSS that we’re missing now with additions like this. It’s rather empowering.

Happy layouts!

Art Matters

I’m in a Microsoft building today that I’ve not been in before. There are a lot of them since I’m a relatively new employee. This one houses a lot of the work that goes into the Windows Phone 7 operating system, and that’s pretty cool.

I arrived early for my conference and decided to spend some time meandering. A 3rd floor native told me I should visit the Windows Phone design studio on the 2nd. The design studio looks like a bunch of art supplies, flowers, and rainbows blew up. It’s very cool actually.

I’m a propeller head for sure, so it’s important to me that a system functions correctly, but I want never to forget that art matters. It matters because it’s human like your users. When I picked out my SCUBA gear, for instance, its ability to sustain my existence while I’m under water was certainly high on my priority list, but it was also an assumption for the most part. SCUBA gear wouldn’t likely make it to the consumer shelf if it wasn’t well tested. So I essentially set that aside and look for gear that I enjoy looking at - gear that makes me feel like a Navy Seal Ninja.

Know that your users are making the same assumptions that your application is going to function as it’s intended, and they are going to choose it, keep it, and pay for it based on its art. Is it beautiful? Is it smooth like butter? Is it inspirational.

The Counter Principles of Metro Style Design

Likely you’ve read the Metro style design principles, but you haven’t seen the counter principles yet (because I made them up). Here we go…

1. Show Shame in Mediocrity

To really show shame in mediocrity, just look at about 80% of the apps in any major app marketplace. These apps may get a users attention with a catchy title or a promise to solve some problem, but then they fail to add any value to anyones life. Even if they are not devoid of functional value they fail to provide any user joy.

  • Ignore the little things
  • Do something different in every little user interaction so you can keep them on their toes
  • Embrace chaos
  • Deviate slightly from the grid so the user knows something is wrong even though that can’t see it

2. Flow Like Peanut Butter

To be clear, peanut butter doesn’t flow. Even creamy peanut butter doesn’t flow. To meet this counter principle, perform actions synchronously, use while loops that peg the processor, and only use the UI thread.

  • Add some offset between the user’s finger and the registered touch point
  • No transitions or animations… all straight cuts
  • Add boring graphics and boring interactions.
  • Embrace lag and jitters

3. Be Faux Analog

It’s 2012, but give the user a solid 1994 experience by rendering an actual real-life scene and hope they’ll figure out which drawer their word processor is in. Even though there’s no actual need for a spiral binding, let’s add one. It’s nostalgic.

  • Show a desk or a lobby or some other loose analogy to your navigation model
  • Firmly draw your limits at real life paradigms and scenarios
  • Expand on the success of Microsoft Bob&copy;

4. Do Less With More

Pack that screen. You have millions of pixels at your disposal. You can use some for navigation, some for commanding, and if there’s room left over you can even include your user’s content.

  • Assure that users can orient themselves to your views within 7.5 minutes
  • Adhere to a strict 45 button limit per view
  • Give users a sense of adventure as they discover your application

5. Die Alone

  • Assume the user is only concerned with doing whatever it is that your app does.
  • Assume they don’t have friends to share your content with.
  • Assume they don’t need to find anything of your content
  • Assume the user what’s to do one thing at a time… always… ever… only

Top 10 Reasons Why I Choose HTML5 Over XAML

My colleague and friend Jerry Nixon recently wrote an article on the top 10 reasons why he chooses XAML over HTML5 and it begged me for a reply. Alas, here it is…
Following are the top 10 reasons why I’m in the HTML/CSS/JS space right now.

I should qualify. I completely adore C# and XAML. I geek out on the nuances of the C# language, lambda expressions give me joy, and LINQ is like dreams and starlight. But that’s not where I am right now. I’m moving on but not moving away. I want both bullets in my belt… the sheer power of C# and the wit and fancy of JavaScript.

More qualification. I love JavaScript and at the same time I hate JavaScript. Sometimes it makes me feel like a coding cowboy and other times like I’m in its gallows.

So here we go…

1. Skill Ready

I and about a kazillion other people in the world have gathered a ton of experience on the HCJ stack. Websites became applications as some point, and they became essential in the enterprise. I would guess that the web stack has drastically more developers than any other stack… but that’s a guess.

2. Triptych

HTML, CSS, and JavaScript form what I like to call the happy triptych. Instead of separating code into two roles, HCJ has three. HTML defines the structure, CSS defines the layout and style, and JavaScript defines the logic. This makes things like modifying the layout and style for different view states or devices as simple as swapping out the style sheet.

3. Dynamic

I know that C# has the DLR and I’ve used it in numerous real scenarios, and it’s some awesome functionality added to the language. JavaScript, however, is truly dynamic. If I want to add a property to my app like lastLaunched, I just type app.lastLaunched = "5/1/2012" and voila I have a new property. If I want to add a function called detectLastLaunched, I just type app.detectLastLaunched = function() { ... }. That’s way cool.


JavaScript has JSON. I know that C# can speak JSON too, but not like JavaScript. JavaScript and JSON go together like peas and carrots.

5. Light

JavaScript is light. Super light. The absence of some of C#’s heavy artillery (I’m thinking polymorphism, inheritance, type safety, etc.) leaves it light and agile. The fancier things like inheritance and even asynchronicity are implemented as patterns instead of as language features. This means they’re not baked in so they can be adapted to suit.

I was newing up some sample data in both languages the other day. I had to declare all of my types in C# and then even with object and collection initializers, the code to create the sample data was quite large and repetitive. In JavaScript on the other hand, it’s a matter of declaring a variable and setting it with very terse object initializer syntax… thing of beauty.
Just compare the default Metro style Grid Application in XAML/C# and then in HTML/JS and you’ll see how light JavaScript is.

6. Libraries

Again, there are a ton of web stack developers out there and consequently there are a ton of web stack libraries and helpers. Search for something like “javascript face detection” and you’ll find an open source library that’s ready to go. Glance at to see what I mean about JavaScript library support.

7. Query Selection

In XAML, it’s easy enough to give a control an ID and then select it in the code. But how do you select all of every third paragraph, the third element in the grid, or something like that. The answer is imperative code. There’s no part of the object model that you can’t access, but with query selectors in CSS and JS, you can use simple strings like div#myDiv p:nth-child(3n) to select every third paragraph in the div with the ID of myDiv.

8. CSS

CSS is amazing. With a collection of style rules, I can style, animate, layout, add images, position things, and a ton more. With declarative CSS code I can make the same HTML view look entirely different. Style rules cascade down to the eventual screen element and allow a developer to set a style globally and then override that style locally given the need.

There’s a JS library called LESS that extends CSS’s capabilities and allows me to set style variable and even do variable math. So I can set the base color of my app to red and then create a number of derived colors (darker or lighter for instance). That way, the change of a single color variable will result in a complete change to my app’s color palette.

9. Blend

The nature of HTML/JS apps means that Blend for Visual Studio can dynamically execute the application while you’re designing it. Expression Blend (the XAML designer for classic Windows apps, Silverlight, Windows Phone, etc.) has some robust support for sample data and designer data because it’s not able to drag in the application data at runtime. With Blend, however, when working on a Metro style app using JavaScript, the entire need for sample data goes away. Instead, you look at your real app data… even if you’re pulling it down from the sky (I’m a little tired of the word cloud, so I choose to use the word sky).

10. Name

I live in Seattle. I drink coffee. Fancy coffee. The people that make coffee in this town are insane about their technique, the quality of their bean, and the nanosecond precision of their brew pull. So I’m enjoying JavaScript because it goes so well with the french press of Ecuadorean joe I hold before me.

Sorry, C#. Your name is sharp, but it’s so technical and boring compared to JavaScript.

Nail. Coffin. JavaScript wins hands down! Oh, whatever. It’s all in fun.

Good Design for App Bar Button Placement

I’ve watched a few developers port their existing apps over to Windows 8.

The first thing they do is drop all of their UI into their new app and run it to see it work. It’s nice to see things work, but Windows 8 is more than just a new API for accessing modern computer hardware. It’s a completely new design for user experience as well. So after you drop all of your buttons into your new app and see it work, you should migrate most of those buttons to the app bar.

The app bar, for the uninitiated, is the bar that slides up from the bottom of the screen whenever the user swipes up from off screen (and sometimes it appears all on its own). That app bar is nice. It avoids bothering the user by appearing only when the user requests it.

Here are some questions that developers raise when they’re learning to design and develop for Windows 8…

  1. Why can’t I put my buttons on the screen like I always have?
  2. Okay, fine, but which buttons should I put in the app bar and which should remain on the canvas?
  3. Do I put the buttons on the left, the right, or what?
  4. What if they don’t all fit?
  5. How do I control when buttons appear?

I’ll take these one at a time…

Why can’t I put my buttons on the screen like I always have?

It’s because it’s 2012 now! The modern trend has been to cram as much information into a user’s screen as possible, but we’ve had enough! When I see so may things I cease to see anything. It’s time to take a step back, take a deep breath, and think about what the user is actually doing right now and dedicate every pixel on the screen to it, immersing the user.

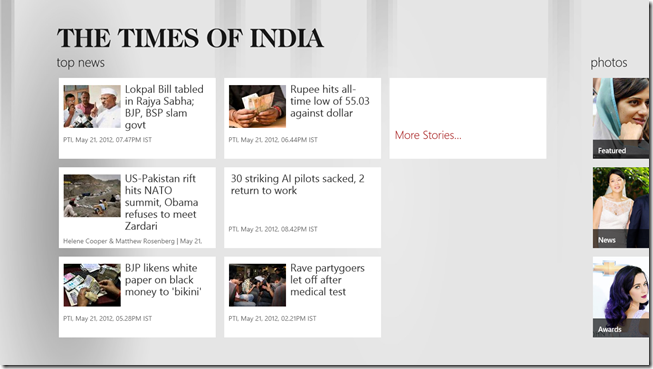

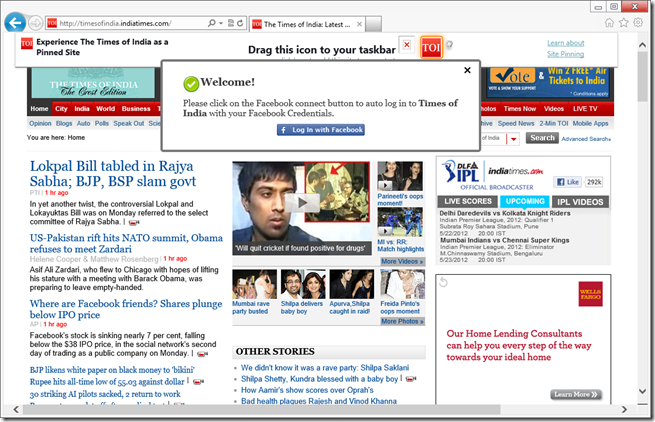

Look at the website versus the Metro versions of the Times of India…

Most of the space in the website version is taken up with navigation commands (hyperlinks), which is a good example of an app telling you about “where you might go” instead of telling you where you are and letting the user navigate with the content.

Okay, fine, but which buttons should I put in the app bar and which should remain on the canvas?

First off, most of the buttons should be in the app bar. It won’t take long for a user to learn that that’s where the interactions are and start to swipe that bar up automatically. Since the app bar is hidden at first (usually), many wonder if their command won’t be apparent enough to the user. Keep in mind, however, that when a user draws up the app bar, they are specifically searching for a command. It takes away the need for discoverability and arguably makes your command more apparent - not less.

Some buttons should be on the canvas though. You would decide to put a button on the canvas when it’s part of the workflow a user is traversing. A case could be made that the workflow itself is the content at that point. If I’m adding products to my cart and checking out, I’m not here to browse content anymore. I’m engaged in the purchasing workflow. If you’re a retailer making a Windows 8 app, I would recommend that you diligently immerse the user in your products and their supporting media to make them love the browsing experience. Then when they decide to checkout, transition them to a slightly more utilitarian mode with canvas buttons and progress feedback.

Do I put the buttons on the left, the right, or what?

In general, the right side is for global commands, and the left side is for contextual commands. There are exceptions, however.

Global commands are those that apply to the entity represented by the current page. If you’re on the friend page, then add to favorites is a global command because it applies to the friend.

Contextual commands are those that apply to the entity or entities the user has selected. If you’re on the my friends page, then add to favorite is going to require that you swipe select one or more friends and would then be a contextual command.

One exception to this is when you don’t have any (and aren’t going to have any) contextual commands because you have nothing for the user to select. In this case, the entire app bar can be dedicated to global commands and the left and right sides should be used to separate the most disparate functions. You could, for instance, put your filtering commands on the left and your sort commands on the right.

What if they don’t all fit?

If you have more commands then you have app bar, then go vertical by combining commands into menus. For instance, if this is what you have on your app bar…

…then combine all of your filters into one menu and your sorts into another. That would bring 9 buttons down to only 4!

How do I control when buttons appear?

If you’re using HTML/JavaScript for your app, the recommended way to add app bar buttons and control when they appear is to declare them all on the default.html file and then in the .js file for each page just control their visibility. This avoids having to manipulate the DOM each time a page is loaded. There are easy functions for doing this such as…


If you’re using XAML/C# then (from what Jerry Nixon tells me), you will actually create the app bar buttons on the page where they’ll appear.

Finally, don’t forget to account for snap view. When your app is snapped, you only have room for 5 app bar command buttons. If you have more then they will wrap up to a second row and it will look funny and your users will laugh at you. And that’s not the response you’re likely looking for.

Happy commanding!
